Energy Optimus EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply Review
We will review "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply", the latest hot product released by Eptech Co., Ltd. in July 2020.
<We won a field test in the Quasar Zone and produced "Enity Optimus EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" provided by Eptech.>
"EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" is a 80PLUS STANDARD certified power supply that guarantees 85% maximum efficiency. In addition, it provides free A/S for 6 years and is a cost-effective power that can be purchased for about 40,000 won.
Contents 1. Unboxing (package and component appearance)-packaging, exterior, cable 2. Product specification and performance test-stability, actual test 3. General review
1. Unboxing "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply"
-"EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" packaging
It arrived neatly and well without any major damage. You can see the Excel Pro logo on the front and the 80PLUS STANDARD certification mark on the top right.There is a logo and certification mark on the back like the front, and there is a label on the bottom right, but I couldn't confirm what wasn't a product number. . Both sides also have the ExcelPro logo and certifications.
When you freeze the box, the first thing you notice is that the power supply is in the pocket-type air cap. In the case of cost performance power, there are cases where it is simply put in a poop or plastic bag, but it is not very much, but it felt like a heartbeat. And this is a picture from above. I was very pleased with the very secure packaging.
The components of "EXCEL PRO 500W 80PLUS STANDARD 230V ED Power Supply" consist of a power supply, a guide and warranty card, 4 black screws & 4 cable tie wires, and a power cable.
-"EXCEL PRO 500W 80PLUS STANDARD 230V EU power supply" appearance

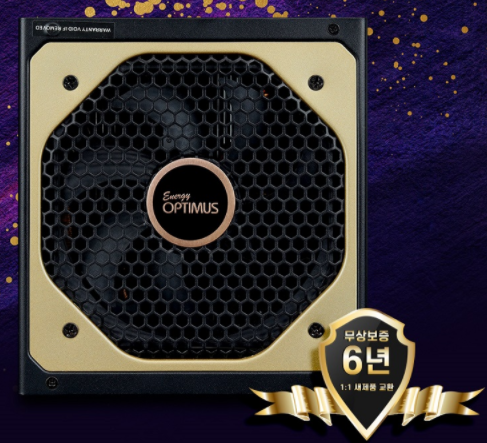

From the top, you can see that gold and black are well combined, and it looks like a luxurious and expensive product. Also in the lower right corner there is a warning not to give me the label. Please note that if you remove that, you cannot receive free A/S.
On the side, the Excel Pro logo and 80PLUS STANDARD certification mark are attached.
Unlike other power supplies, the exhaust port has a diagonal hole in a rectangle. It is usually a hexagonal honeycomb structure, but it seems to be the design difference of "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply".

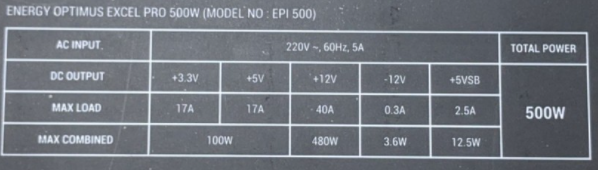

In the upper right corner of the side, there is a serial number and a bar code to indicate the product's production date. The power supply table of "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" is attached on the back. Everywhere you look, you can see that the finish is clean and goes well with the gold color of the intake vents.

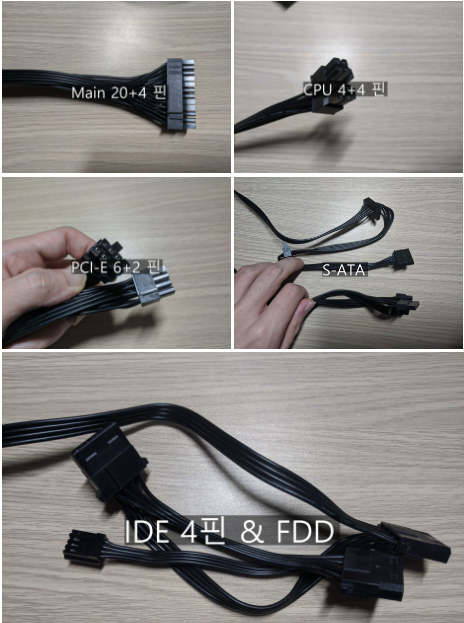

-"EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" cable
First of all, all cables of "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" are black and have a flat structure. If the structure is not a flat type, be sure to check the flat type because the wire may be stressed by the main board when connecting the CPU pins when assembling the PC. In addition, it is more comfortable when assembled.
The peculiarity is that the 24-pin cable is not sleeving, but it may be a little inconvenient during the assembly process, but aesthetically it gave a different feeling, so after assembly it was okay.

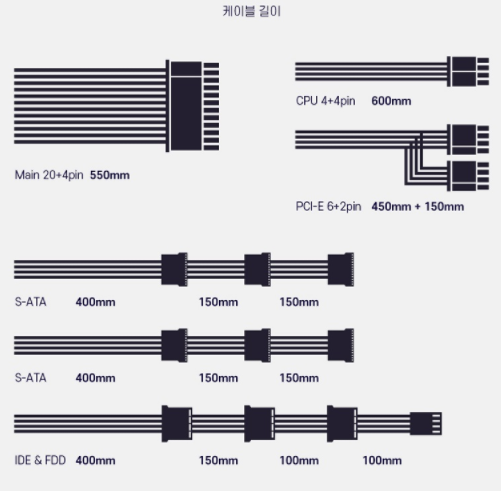

The length of the cable was okay. Personally, if the 24-pin cable was a little longer, I think it would be more convenient when organizing the wires.
2. "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" specification and performance test
-"EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" Specification
It provides a single rail +12V output that can be used up to 480W, which is 96% of the maximum output.

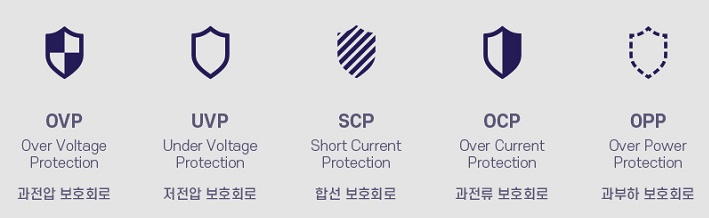

It is also designed with OVP, UVP, SCP, OCP, and OPP five-fold protection circuit so that the power supply can safely protect the system. In addition, efforts to increase durability and stability such as EMI double filter, switching transformer, fuse & ground circuit are visible.
An important part of a power supply. It is the A/S period. As mentioned earlier, "Energy Optimus EXCEL PRO 500W 80PLUS STANDARD" provides free A/S for 6 years and exchanges 1:1 new products.
-"EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" performance test
The experimental computer specifications are as follows, and we conducted an open test.
First of all, I went into the bios and checked the voltage. It was confirmed that it came out well within the error range, and the noise from the power in a general environment was about 57dB. It was quieter than the sound of the graphics card or CPU air cooler.

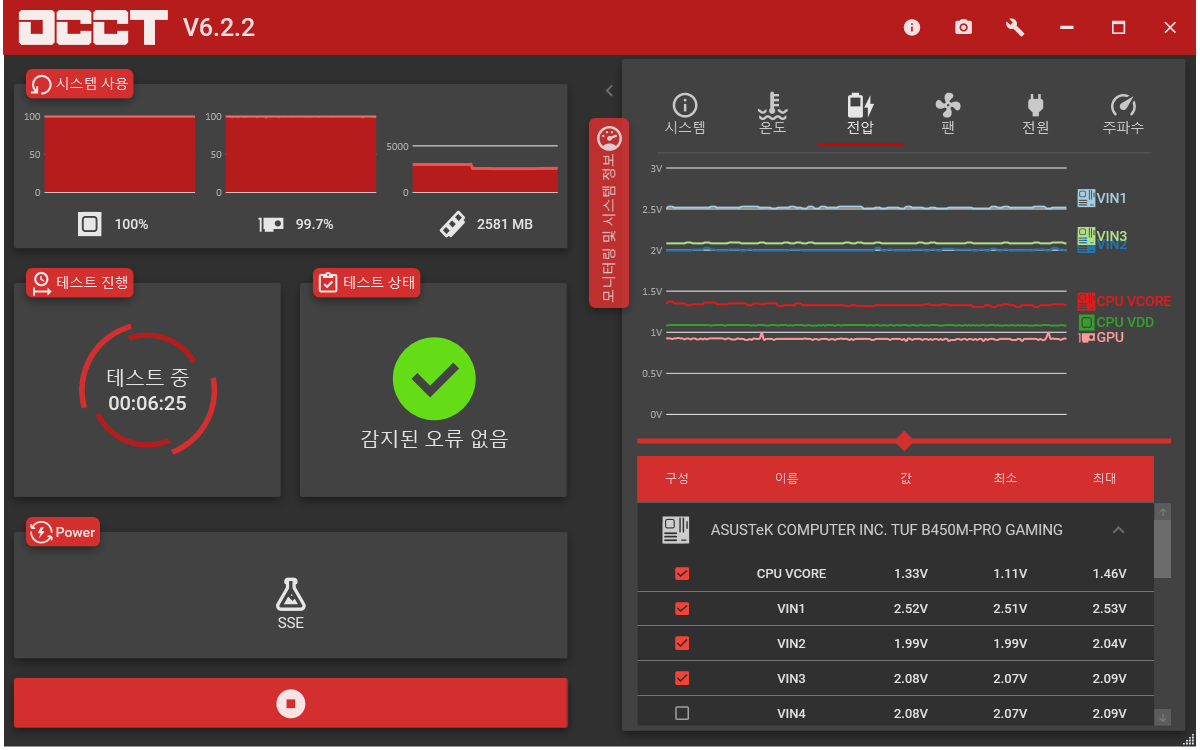

As a result of testing with OCCT, the voltage was stably supplied without a large drop. It is also 80PLUS STANDARD certified. However, with full load, the noise rose by about 10dB and was similar to that of the graphics card cooling under full load. I felt a little disappointed in the noise part.
3. General review of "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply"
First of all, it is regrettable that the noise was a little high during full load. Because "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" was a product that was very satisfactory in terms of stability, durability, A/S, and price, and it was a good power for cost performance power, so I thought it would be good if the noise was a little lower. . However, even though it was not an expensive product, the details such as the design, product finish, and air cap packaging were similar to that of an expensive product, so there was enough satisfaction.

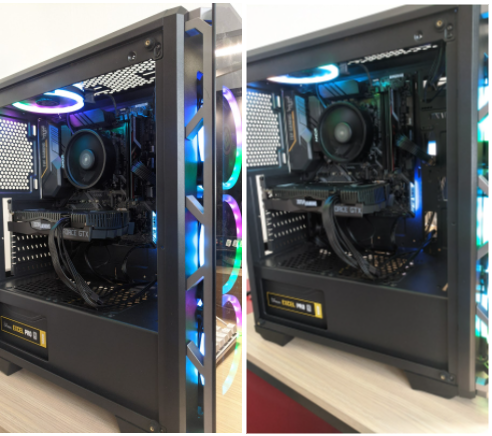

Unlike general ATX power, it was new and satisfactory as I could see a tight, tight appearance when mounted on the case.
The all-black flat cable also didn't feel foreign to the fish and gave it a neat feel. So, in terms of price, performance, and service, I thought that it was a good cost-effective power supply for use in home PCs or office PCs. If you need the cost-effective power "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply", please refer to the purchase link below. <We won the field test in Quasar Zone and produced the "EXCEL PRO 500W 80PLUS STANDARD 230V EU Power Supply" provided by Eptech.>
